LAND ROVER EVOQUE Installation Instruction

The Land Rover OEM player installation is different with other auto model (Bmw, Audi , Benz ,etc ) , there are two important steps before installation.

Please read this instruction before installed the OEM player and we advise only operated by technician.

Step 1

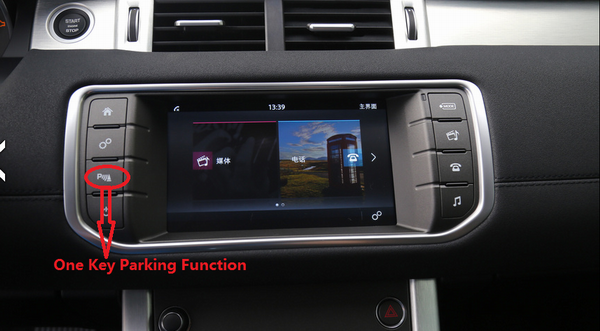

How to keep the one key Parking function in OEM player ?

Original dashboard image :

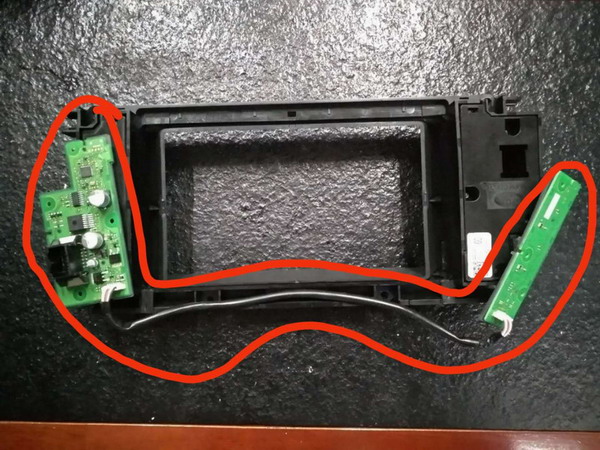

Note: the PARKING circuit was marked in red .

When you ready to modify your dashboard instead of OEM multimedia navi player, removed the panel behind of the key boards. put the  “PARKING “  circuit board into our OEM player’s circuit board which is located in OEM player main board  .

Step 2  How to remove the original CD mainboard and put it into our OEM player main board, the operation is shown in video .

Pls check the youtube link :

https://www.youtube.com/watch?v=ro3XzCT0Q0A&feature=youtu.be



Step 3

connected the another port as basic installation .  Note: each ports are compatible with the right connectors.

Click here to download 【Land Rover installation instruction】
